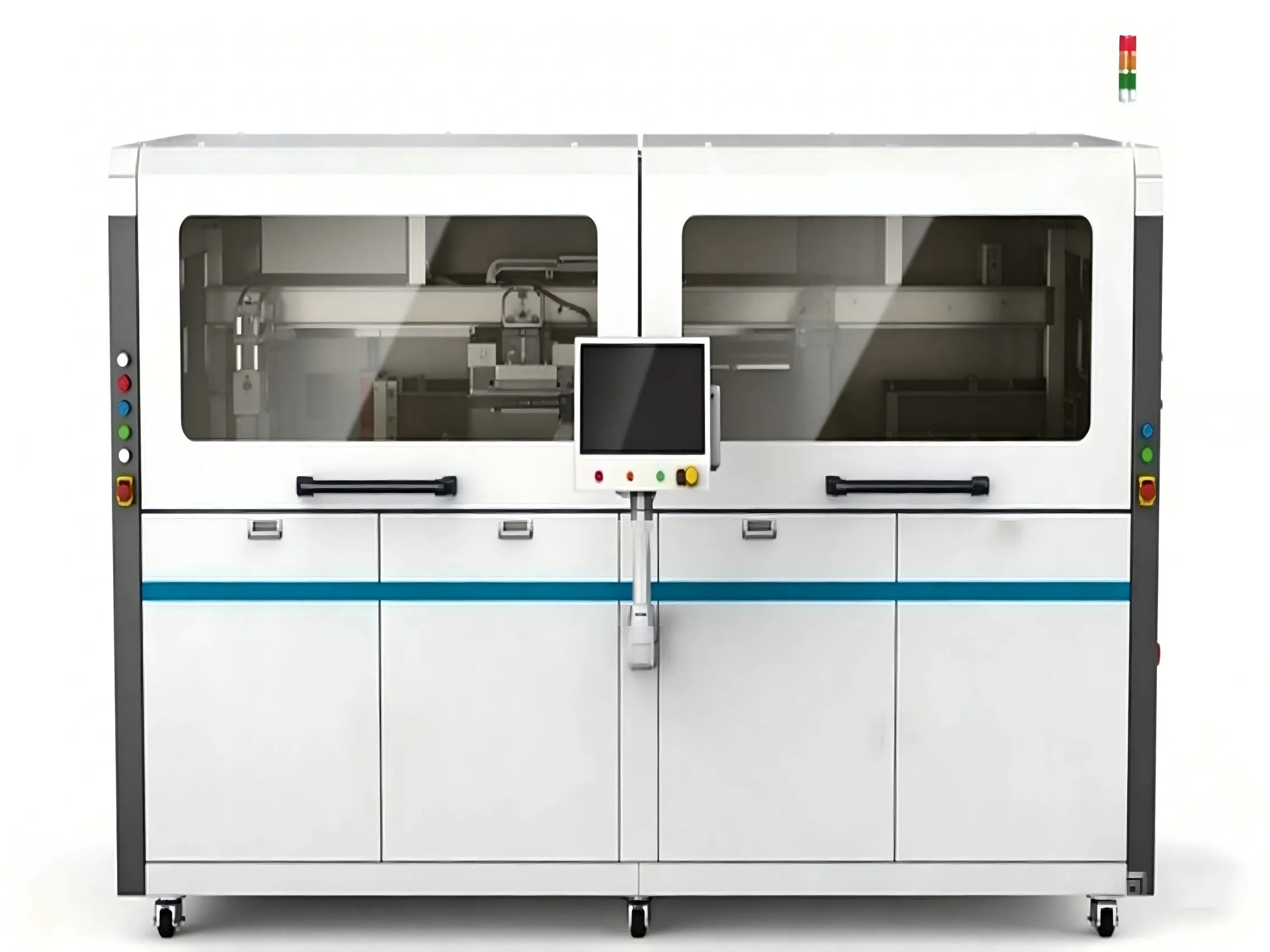

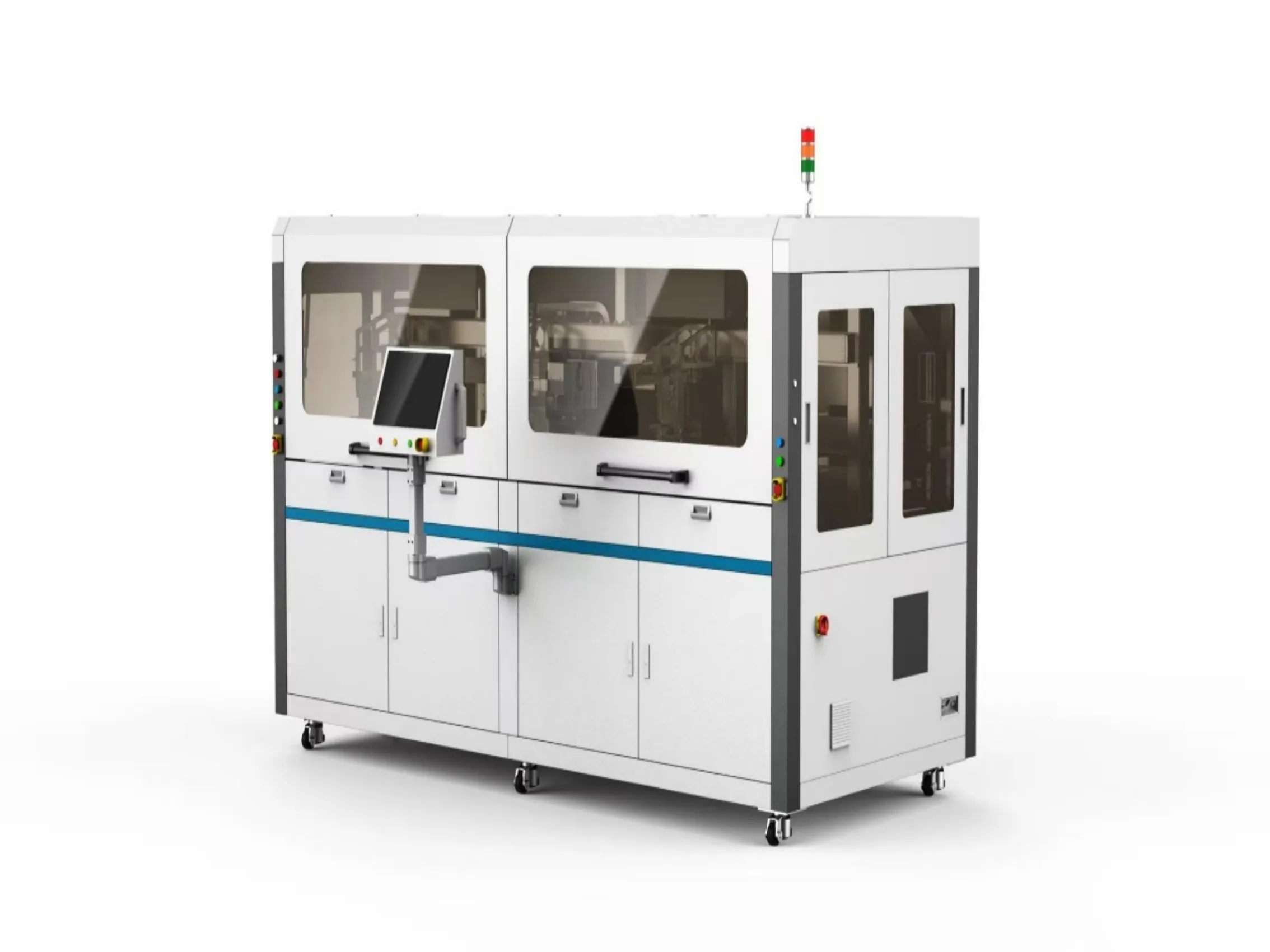

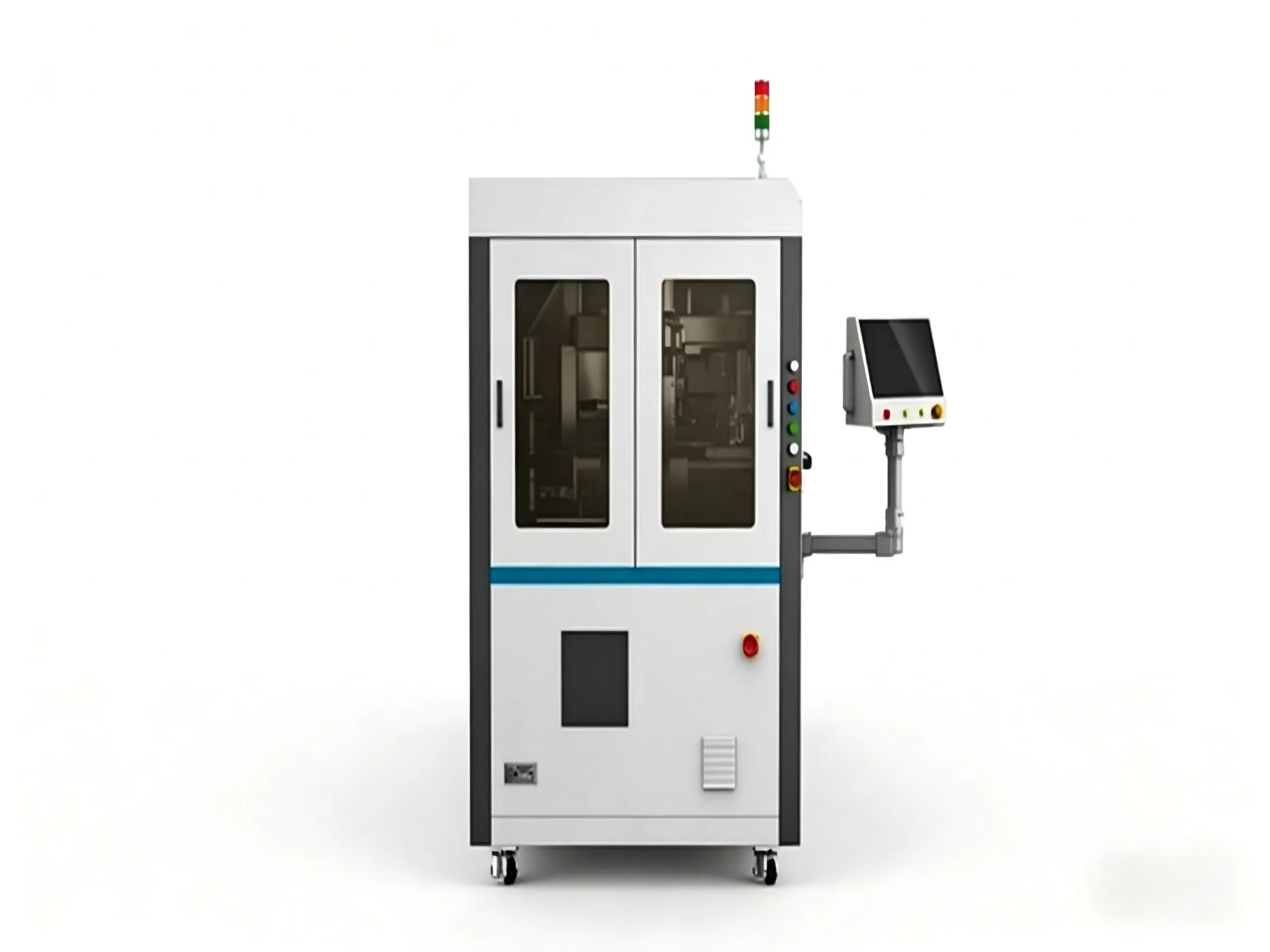

.webp "ESD200A ePassport Sheet Laser Window Cutting Machine")
The ESD200A sheet laser window cutting machine is designed to fully meet the high-precision cutting requirements of high-security documents such as ID cards and passport data pages, and is applicable to the high-precision cutting processing of ID-1 and ID-3 type sheets made of PC, ABS, PETG, PVC and other materials. The ESD200A is equipped with full-process core modules including feeding, laser cutting, cleaning, visual inspection and material collection. Its laser system is equipped with a 20W UV picosecond laser and a visual positioning camera, and cooperates with a high-precision motion platform to achieve micron-level precise cutting. The visual inspection module can conduct dual inspections of cutting position accuracy and material surface stains, which fully ensures the processing accuracy and finished product quality of sheet cutting.

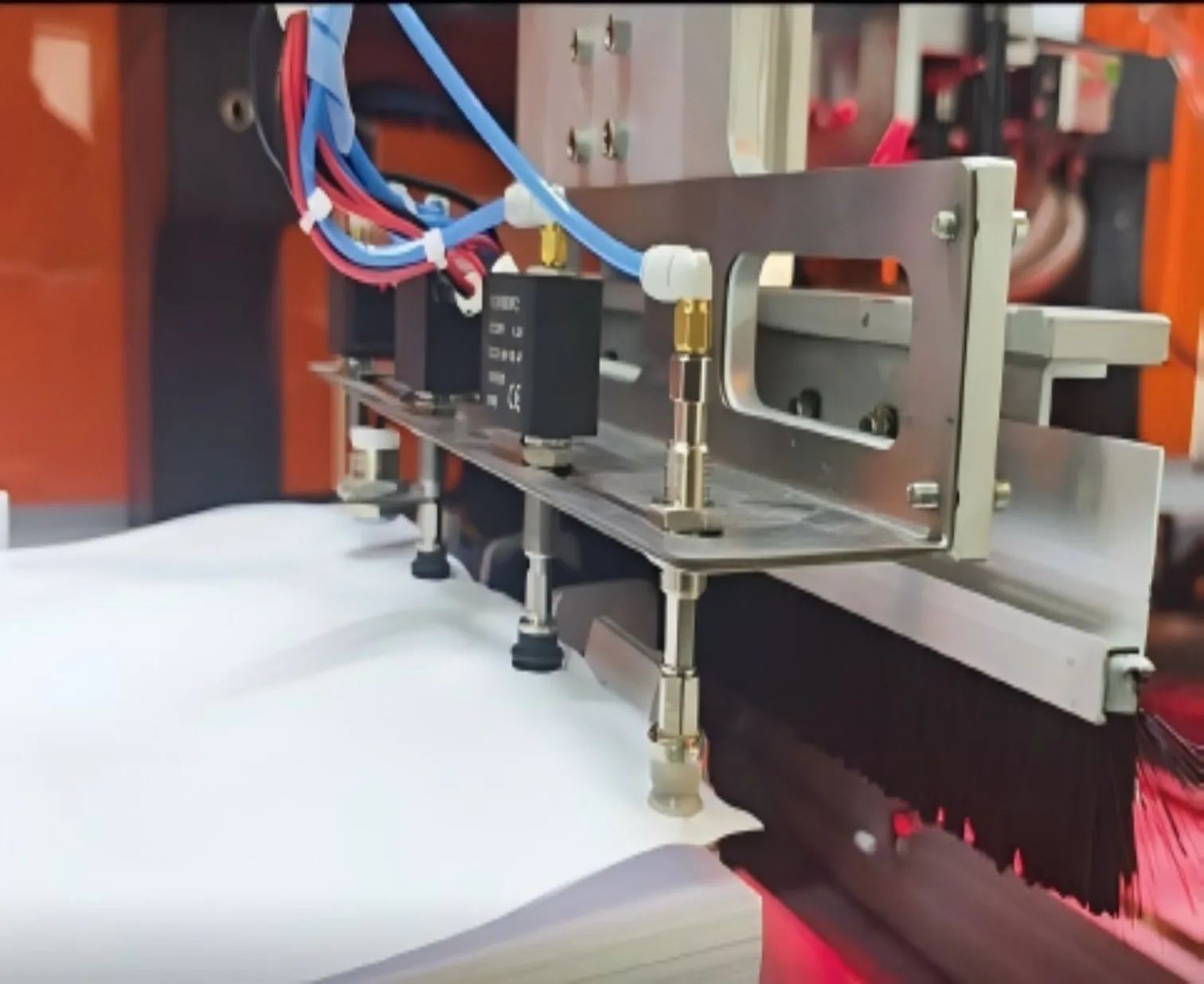

Equipped with 1 adjustable hopper, which can be according to the size of the material. The hopper supports materials with a minimum size of 190mm × 288.5mm and a maximum size of 385mm × 475mm;
Can stack up to 500 sheets of materials with a thickness of 0.2mm;
Equipped with an ultrasonic double-sheet detection sensor, supporting material detection with a thickness range of 0.05mm - 0.2mm.

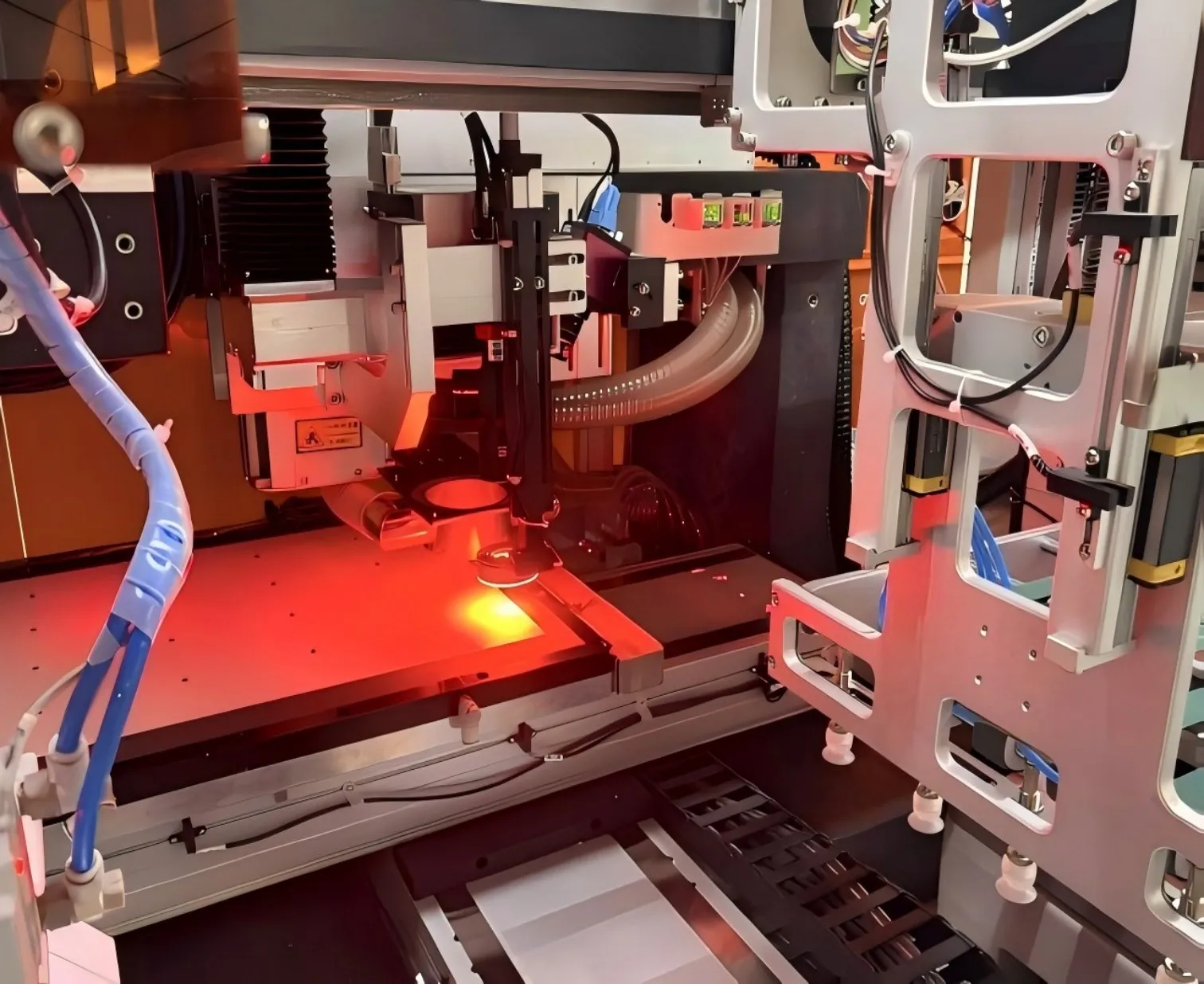

1 unit of 20W ultraviolet picosecond laser;1 unit of vision positioning camera, which work together with the laser via vision positioning system to achieve precision cutting;
Auxiliary equipment includes 1 unit of smoke purifier and 1 unit of laser chiller;
1 set of laser control software, which executes control procedures such as graphic design, DXF design file import, and laser parameter adjustment;Supports optional character variable personalized cutting requirements.
1 set of microporous vacuum adsorption platform; the platform size can be customized according to production material requirements;

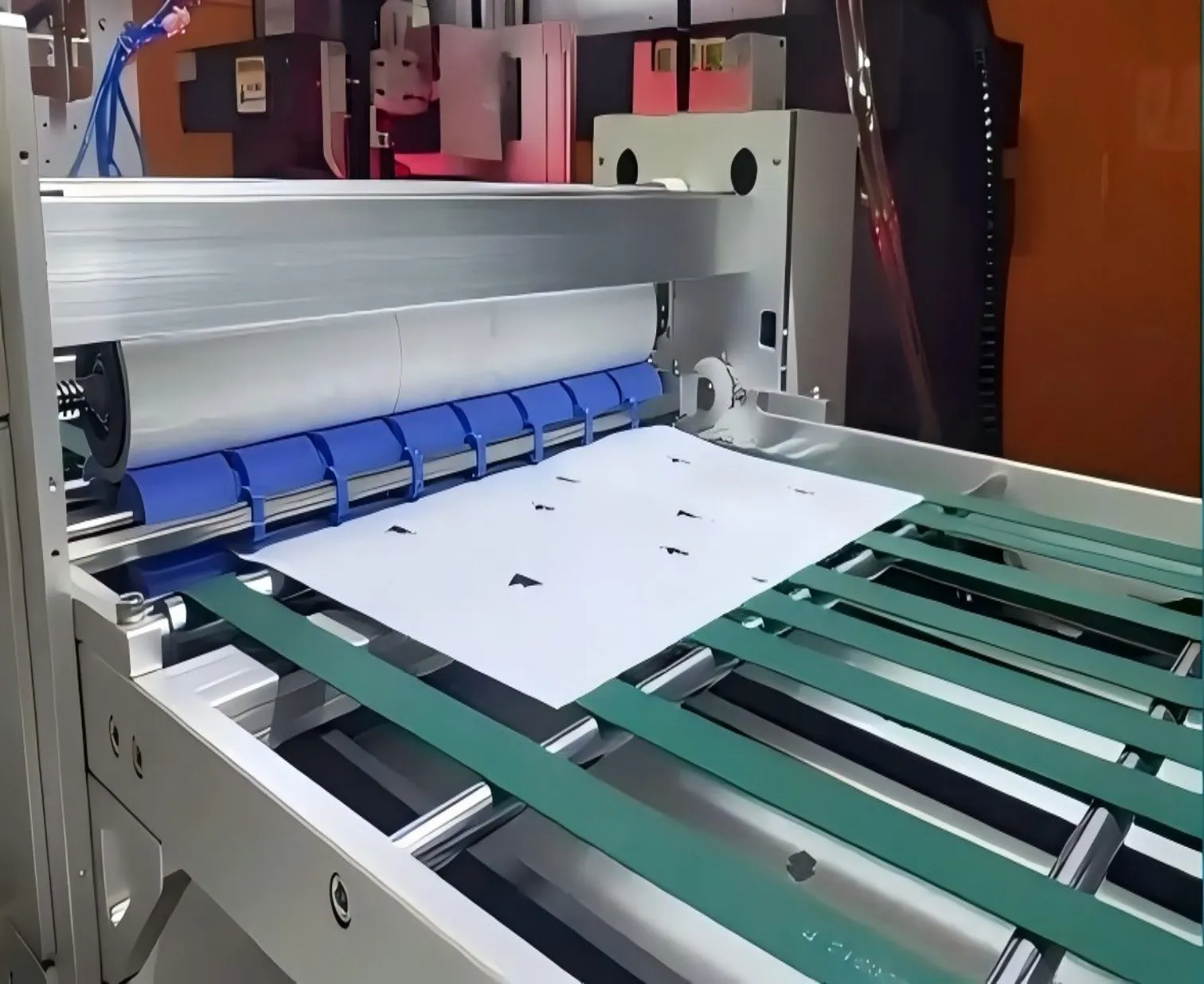

Supports double-sided cleaning of materials without causing any secondary damage to the material itself.

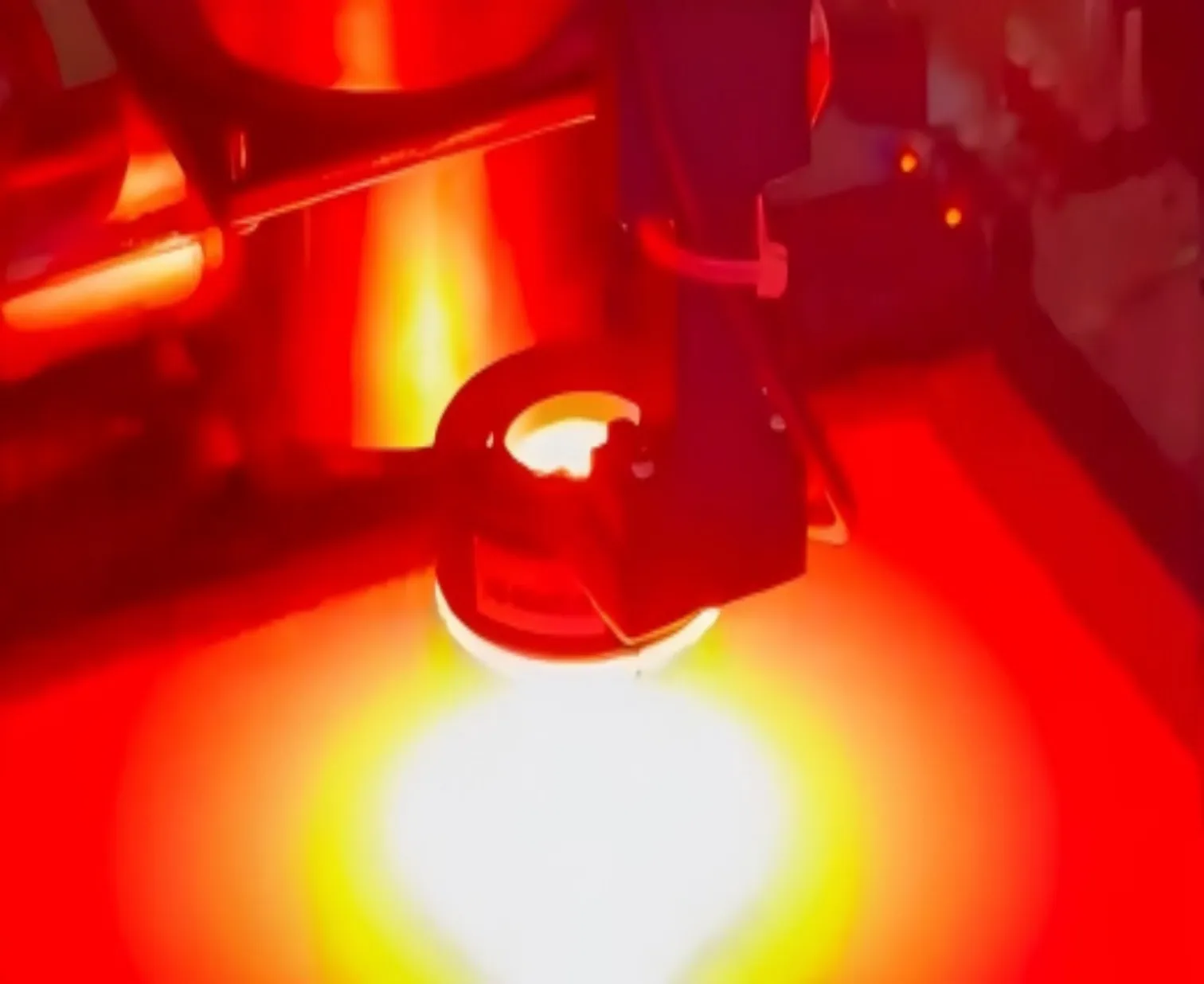

12-megapixel high-resolution camera and a high-performance optical solution;
Supports inspection of white materials and transparent materials;

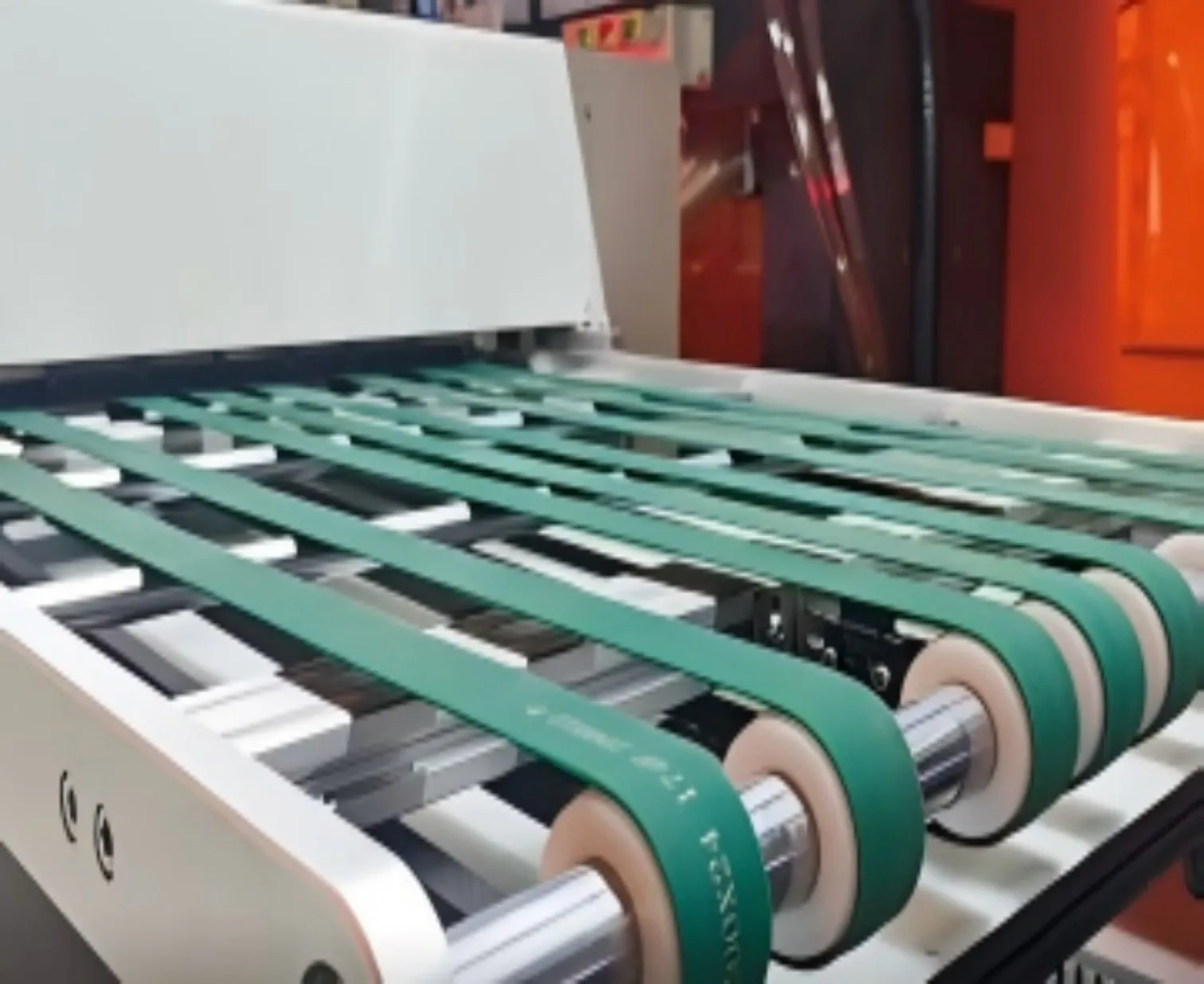

Equipped with 1 adjustable hopper, which can be adjusted arbitrarily according to the size of the material..The hopper supports materials with a minimum size of 190mm × 288.5mm and a maximum size of 385mm × 475mm;
Can stack up to 500 sheets of materials with a thickness of 0.2mm.
| Material | PC, ABS, PETG, PVC, etc. |
| Format | ID-1, ID-3 |
| Material thickness | 0.05mm-0.2mm |
| Production speed | 180 sheets/hour, depending on the material and die-cutting time. |
| Cutting position accuracy | ±0.05mm |
| Cutting size accuracy | ±0.02mm |
| Dimensions | 3550mm (L)× 650mm (W)×2100mm (H) |
| Weight | 3500KG |
| Power supply | 220V(-5%～+10%), 50Hz, 8KW |
| Operation condition | Room temperature: 23°C ± 3°C, Humidity: 50% ± 10% |
Achieve micron-level cutting accuracy with ±0.05mm position tolerance and ±0.02mm dimension tolerance.
Compatible with sheet materials of 0.05-0.2mm thickness and various materials, supporting ID-1/ID-3 types and optional variable character cutting requirements.
Equipped with ultrasonic double-sheet detection, double-sided cleaning and 12-megapixel high-resolution visual inspection.
Laser control software supports graphic design, DXF file import and parameter adjustment.
